Precision Serrated Packaging Machine Knives

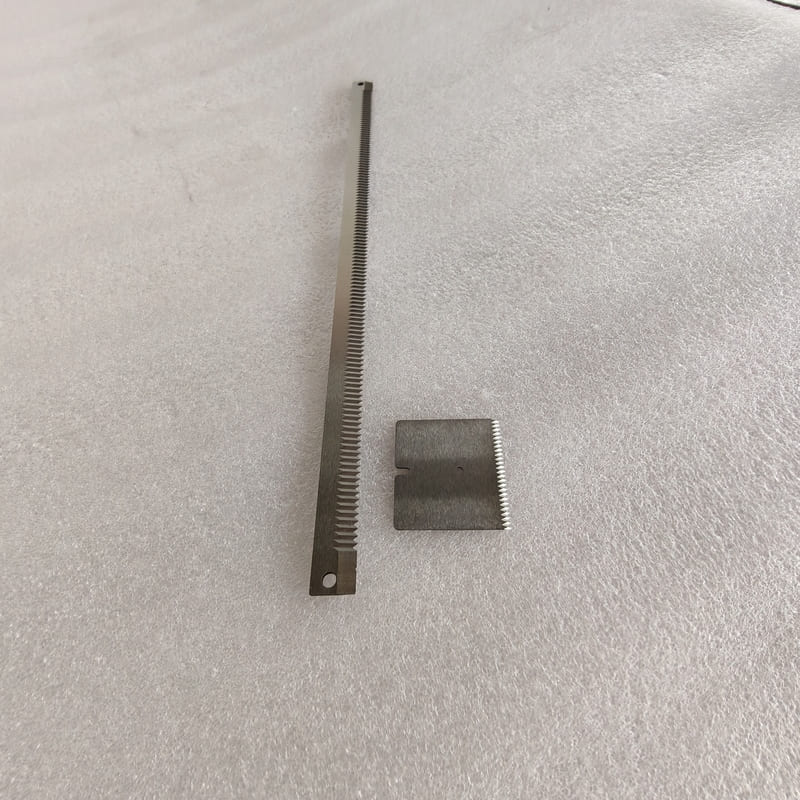

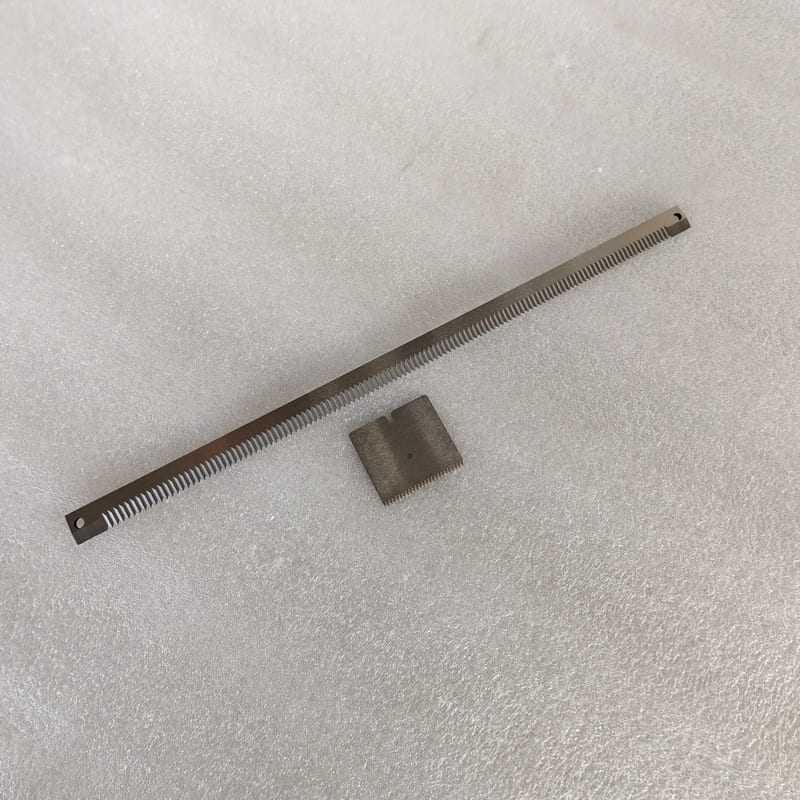

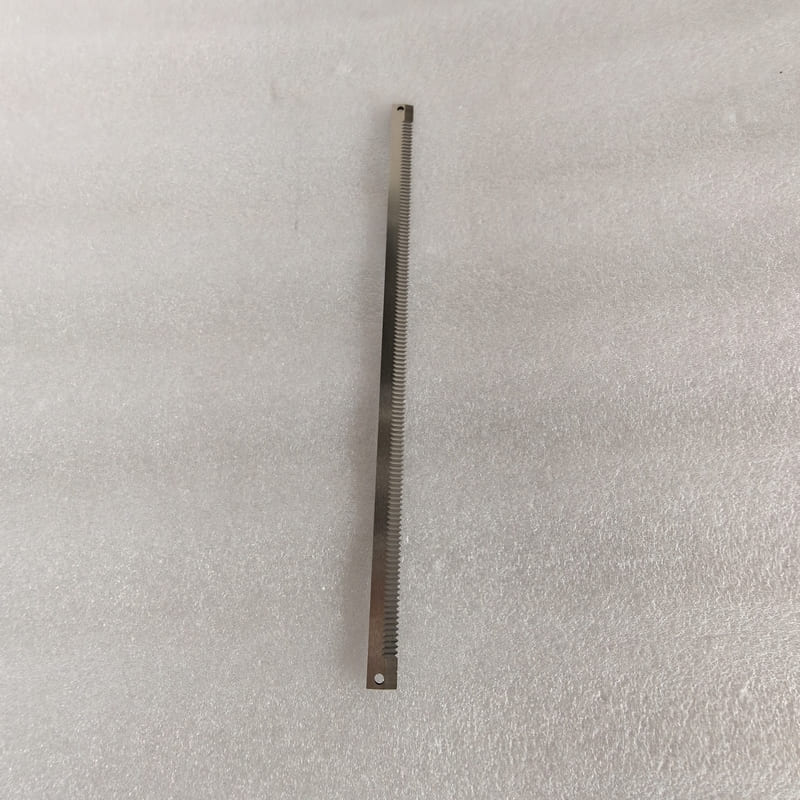

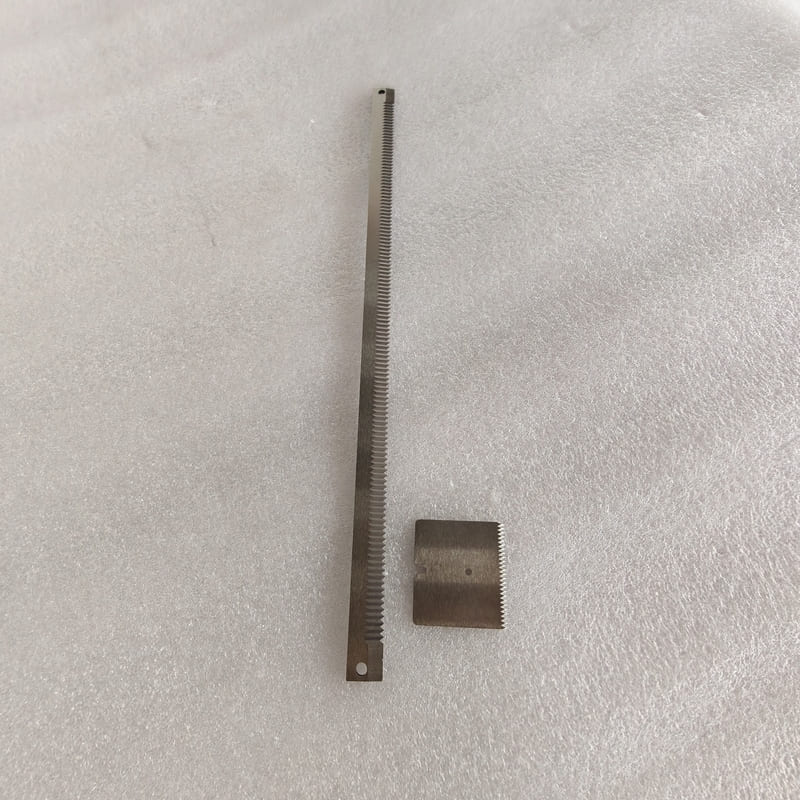

Precision Serrated Packaging Machine Knives

Ma'anshan Guangchuan Machinery Knife Mold Technology Co., Ltd. is a leading manufacturer of high-precision serrated knives specifically engineered for continuous-use packaging machines. These specialized blades are designed to deliver consistent, clean cuts on a wide range of flexible packaging materials—including plastic films, laminates, paper, and composite bags—at high line speeds. Manufactured from premium-grade tool steels and finished with precision-ground serrated edges, our packaging machine knives ensure tear-free seals, reduced downtime, and exceptional wear resistance for your automated packaging lines.

  • Order(MOQ) :

    1
  • Payment :

    TT,LC
  • Product Origin :

    China
  • Color :

    N/A
  • Shipping Port :

    Ma'anshan Shipping Port
  • Lead Time :

    30 days

Ma'anshan Guangchuan supplies precision serrated packaging machine blades and custom cutting components to packaging companies worldwide. Our blades feature high-precision, uniform tooth profiles and mirror-polished anti-stick surfaces, making them compatible with all major vertical form-fill-seal (VFFS) machines, fluid packaging machines, and pouch packaging machines. We offer reliable OEM replacement solutions that help reduce adhesive buildup and extend production uptime.

Technical Specifications

Parameter

Description

Material Options D2 (SKD11), 420 Stainless Steel, HSS (M2), LD, High-Grade Carbide (Customizable)
Hardness 55-62 HRC (Optimized for high-speed film and laminate cutting)
Tolerances Flatness (Parallelism) ≤ 0.003mm; Tooth Pitch Tolerance ±0.01mm; Runout ≤ 0.005mm
Blade Length 50mm to 800mm+ (Fully Customizable)
Thickness Range 0.3mm to 10mm (Tailored to machine requirements)
Tooth Profile V-Serrated, W-Serrated, Perforation, Custom Pitch (1-5mm) & Angles
Processing Vacuum Heat Treatment, Deep Cryogenic Treatment, Precision CNC Grinding, Optional TiN/DLC Coating

Main Features

  • Precision Serrated Tooth Geometry: Each blade features laser-cut or precision-ground serrations with uniform pitch and height, ensuring consistent tearing, perforation, or cutting across the entire blade length.
  • Exceptional flatness and parallelism: CNC machining effectively eliminates blade vibration, uneven wear, and seal contamination during high-speed operation.
  • Superior Wear & Corrosion Resistance: Premium tool steel construction (with optional PVD coatings) provides exceptional edge retention, even when cutting abrasive or chemically treated packaging films.
  • Flexible Material Compatibility: Engineered to handle all common packaging materials, including BOPP, PET, PE, laminated films, kraft paper, and composite foil bags.
  • Machine-Specific Fitment: Precision-machined mounting holes and dimensions ensure drop-in compatibility with all major packaging machine brands (including flow wrappers, vertical form-fill-seal, and horizontal sealers).

Advantages

  • Consistent Seal Quality: The serrated edge delivers clean, tear-free cuts without damaging the heat-seal area, ensuring reliable seals and reducing product spoilage.
  • Extended Service Life: High-quality steel and precision grinding processes extend the service life of these blades beyond that of standard OEM blades, thereby minimizing costly replacement expenses.
  • Reduced Downtime: Uniform tooth wear and consistent cutting performance eliminate mid-run jams or mis-cuts, maximizing line uptime.
  • Versatile Cutting Performance: Available in multiple serration profiles (cutting, perforating, tearing) to meet specific packaging requirements (easy-tear notches, perforated tear strips, full cuts).
  • Cost-Effective OEM Alternative: Manufacturer-direct pricing provides premium-quality blades at a fraction of OEM replacement costs, with no compromise on fit or performance.

Product Applications

  • Flexible Film Cutting: For flow wrap, pillow bag, and VFFS packaging machines
  • Perforated Tear Strips: Creating easy-tear openings on snack bags, stand-up pouches, and shrink wrap
  • Heat-Seal Cutting: Precision trimming of sealed edges without damaging the seal integrity
  • Paper & Cardboard Packaging: Cutting kraft paper, corrugated boxes, and paper-based packaging materials
  • Composite Material Cutting: Handling multi-layer laminates, foil-backed films, and coated papers

Why Choose Us

  • Packaging Industry Expertise: We have extensive expertise in manufacturing cutting tools for automated packaging equipment
  • Tolerance & Quality Guarantee: Every blade undergoes rigorous quality control, including hardness testing, flatness verification, and tooth pitch inspection
  • Advanced Manufacturing: State-of-the-art CNC grinding and heat treatment facilities ensure consistent, high-precision production
  • Fast Lead Times: We maintain extensive tool steel stock and offer expedited production for urgent replacement needs
  • Comprehensive Support: Our technical team provides expert guidance on blade selection, installation, and maintenance to maximize your line efficiency
Leave A Message
If you have any questions, please to contact us in time, or send an email to us, thank you for your inquiry!

Related Products

Long and short packaging machine serrated blades
Precision Serrated Packaging Machine Knives

Ma'anshan Guangchuan Machinery Knife Mold Technology Co., Ltd. is a leading manufacturer of high-precision serrated knives specifically engineered for continuous-use packaging machines. These specialized blades are designed to deliver consistent, clean cuts on a wide range of flexible packaging materials—including plastic films, laminates, paper, and composite bags—at high line speeds. Manufactured from premium-grade tool steels and finished with precision-ground serrated edges, our packaging machine knives ensure tear-free seals, reduced downtime, and exceptional wear resistance for your automated packaging lines.

Details
Stacked stainless steel food cutting blades
Food-Grade Industrial Cutting Knives

Ma'anshan Guangchuan Machinery Knife Mold Technology Co., Ltd. is a trusted manufacturer of precision food-grade cutting blades engineered exclusively for the food and beverage processing industry. Our double-edged food processing knives are designed to meet the strictest sanitary standards while delivering exceptional cutting performance and long service life. Manufactured from premium food-safe stainless steels and finished to mirror-like precision, these blades ensure clean, consistent cuts without product deformation or contamination. Whether you are processing meats, baked goods, fruits, vegetables, or confectionery, our blades are optimized to maximize your production efficiency and maintain the highest food safety standards.

Details
Different size industrial shredder blades with slotted mounting holes
High-Precision Industrial Crusher Blades

Ma'anshan Guangchuan Machinery Knife Mold Technology Co., Ltd. is a leading manufacturer of heavy-duty industrial shredder blades and crusher knives engineered for the most demanding material reduction applications. Our straight-edge shredder blades are purpose-built to withstand the extreme impact, abrasion, and continuous operation of industrial recycling and processing lines. We utilize premium-grade tool steels and advanced sintered carbide materials, combined with precision CNC machining and vacuum heat treatment, to deliver blades that outlast standard alternatives. These high-performance blades ensure consistent particle size, minimize downtime, and significantly reduce your overall operational costs amid rising raw material prices.

Details

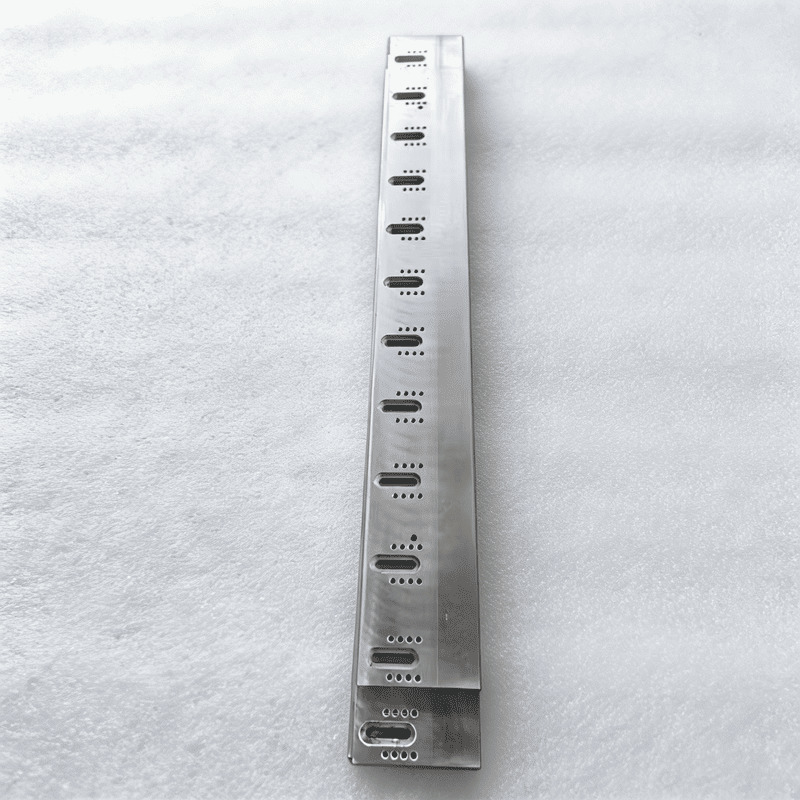

HSS steel paper cutting blade with mounting holes
High-speed steel HSS cutting blades for paper cutters

Ma'anshan Guangchuan Machinery Knife Mold Technology Co., Ltd. is a leading manufacturer of high-precision guillotine paper cutter blades engineered for the printing, packaging, and paper converting industries. Our industrial-grade paper cutting blades are designed to deliver clean, burr-free cuts on all paper grades at high production speeds, ensuring consistent product quality and maximum throughput. Manufactured from premium tool steels with advanced heat treatment and precision grinding processes, these blades offer exceptional edge retention, long service life, and stable performance even under continuous operation.

Details
Granulator blades for rigid plastic recycling
D2 Steel Plastic Granulator Blades for PET Bottle & Rigid Plastic Recycling

Ma'anshan Guangchuan Machinery Knife Mold Technology Co., Ltd. is a specialist in manufacturing high-precision granulator knives and rectangular flat cutting blades with slots for the plastic, film, and rubber recycling industries. These knives are the primary cutting components in granulators and slitting machines. The design features elongated slots, allowing for adjustable positioning shear blades to achieve the critical gap tolerance for clean granulation and cutting. Utilizing high-performance tool steels like D2 and HSS, our blades ensure minimal wear, maximum toughness, and superior longevity, making them an ideal long-life film trimming knife replacement solution.

Details

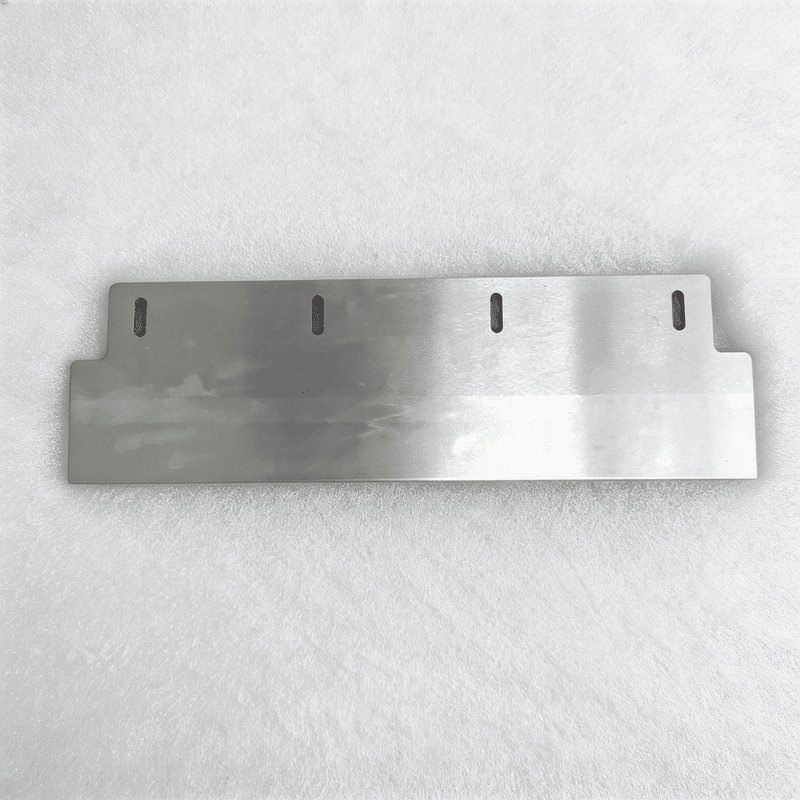

D2 steel paper guillotine bottom knife
Custom 440C Stainless Steel Guillotine Blades for Food Packaging Machines

Ma'anshan Guangchuan Machinery Knife Mold Technology Co., Ltd. supplies precision long straight trimming knives for paper and large format flat industrial knives for a wide range of industries including paper conversion, plastics, printing, and packaging. These long, straight, custom-shaped blades are crucial for achieving clean, precise trim lines and cut-offs on wide-web materials. The design often features custom elongated slot machine blades to facilitate micro-adjustments for optimal cutting clearance. Manufactured from high-grade tool steel (D2, HSS), our knives are precision ground to ensure superior straightness, maximum edge retention, and seamless performance in high-speed, continuous operations.

Details

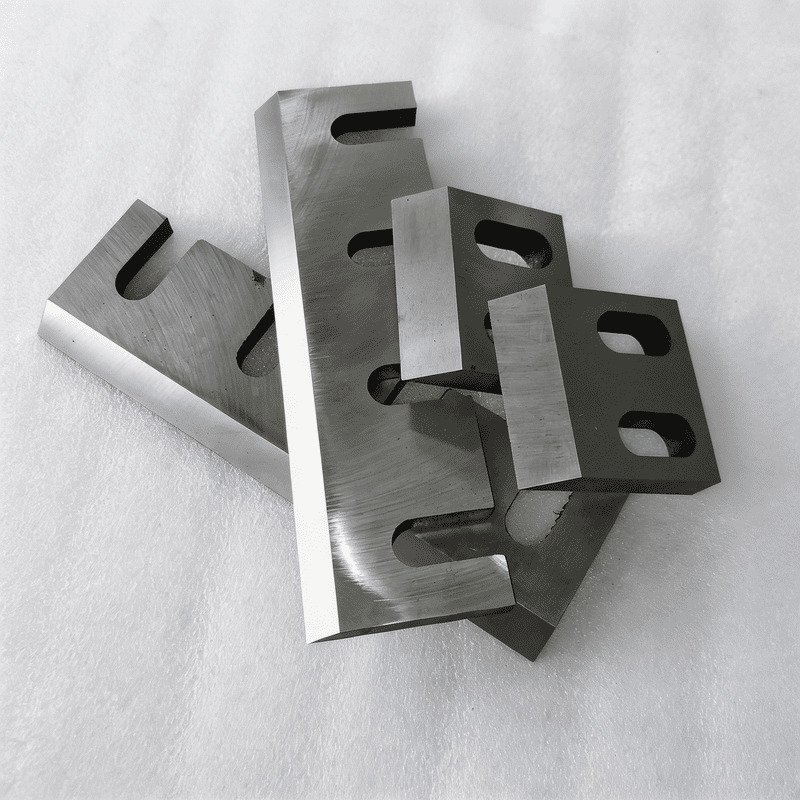

Granulator blades for PET bottle recycling
