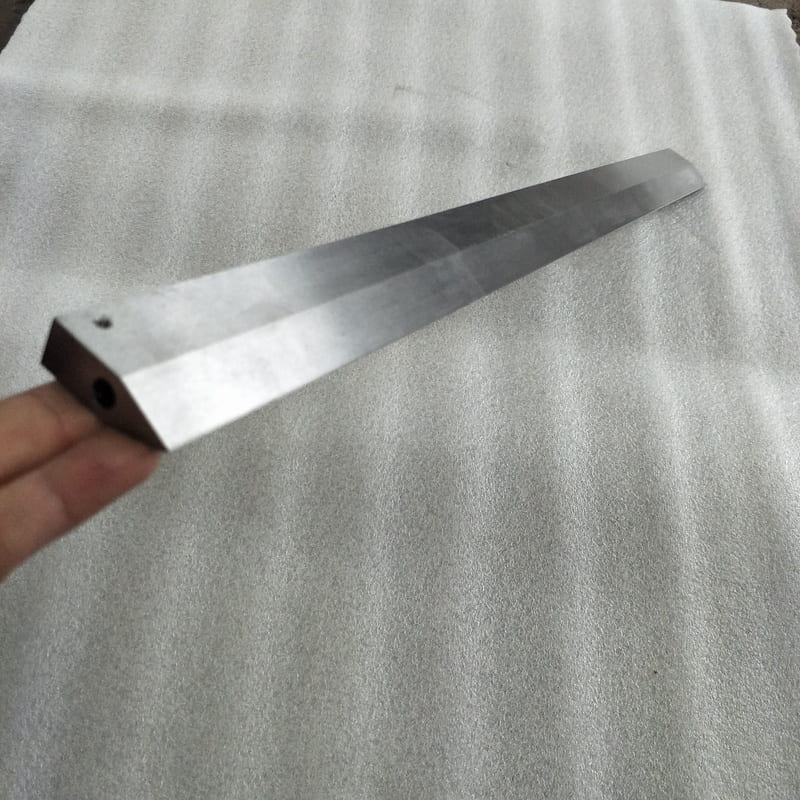

Ma'anshan Guangchuan Machinery Tool & Die Technology Co., Ltd. is a specialist manufacturer of hydraulic shearing machine blades and steel cutting guillotine knives used globally in metal fabrication and processing. These long straight metal cutting knives are precision-engineered to withstand the massive forces required for cleanly shearing materials ranging from thin steel sheets to heavy gauge metal plates. Utilizing high-grade alloy tool steel (D2, H13) and proprietary heat treatment processes, our blades ensure minimal material deformation, maximum edge life, and outstanding reliability under continuous heavy-duty use.
Order(MOQ) :
1Payment :
TT,LCProduct Origin :
ChinaColor :
N/AShipping Port :
Ma'anshan Shipping PortLead Time :
30 dayMa'anshan Guangchuan manufactures hydraulic shearing machine blades and long straight metal cutting knives up to $5000mm$. We specialize in D2 material shear blade replacement and high-grade H13 shear knives. Choose our precision steel cutting guillotine knives and four edge square shear blades for superior cutting quality and extended life.
Technical Specifications
|
Parameter |
Description |
| Material Options | D2 (SKD11), H13 (SKD61), 6CrW2Si, 9CrSi (Customizable) |
| Hardness (HRC) | $55-62$ HRC (Optimized for balance of strength and toughness) |
| Blade Length | Up to $5000mm$ (Full size range for standard and custom machines) |
| Edge Geometry | Single Bevel (Top Blade) or Four Edge (Bottom Blade) |
| Tolerance | Straightness (Parallelism) $\le 0.05mm/m$; Hole Center Distance $\pm 0.05mm$ |
| Processing | Vacuum heat treatment, Precision Surface Grinding |
| Application | Shearing thin sheets, stainless steel, mild steel, aluminum, and heavy plates |
Main Features
Premium Alloy Steels: High-quality raw materials like D2 and H13 ensure high wear resistance and impact strength, essential for D2 material shear blade replacement.
Four-Edge Design: Most bottom blades are manufactured with four usable cutting edges, maximizing the utility and lifespan of the four edge square shear blades.
Critical Straightness: Advanced grinding machinery ensures extreme flatness and straightness, minimizing the cutting gap for clean, precise cuts across the entire blade length.
Compatibility: Our blades are manufactured to OEM specifications, suitable for major shear machine brands like Amada, Bystronic, Trumpf, LVD, and local Chinese brands.
Custom Slotting: Expertly machined mounting holes and slots to ensure secure, rapid installation without alignment issues.
Advantages
Extended Sharpening Cycles: Superior material and thermal treatment dramatically increase the time between regrinds.
Reduced Burr & Distortion: Tight manufacturing tolerances ensure the optimal cutting angle and minimal clearance, resulting in a cleaner shear and reduced material waste.
High Load Capacity: The toughness of the steel (e.g., high-grade H13 shear knives) allows the blade to handle thick and high-strength materials without chipping or cracking.
Custom Solutions: Specializing in complex custom shear machine tooling and non-standard sizes for specialized industrial applications.
Product Specifications
Guillotine Shear Blades: For fixed-angle and variable-rake hydraulic/mechanical shearing machines.
Crocodile Shear Blades: Heavy-duty, often curved or multi-piece blades for metal scrap alligator shear blades.
Materials: Tailored alloy selection (e.g., 9CrSi for light shearing, D2 for general use, H13 for high-temp/high-stress applications).
Length/Width: Manufactured to exact customer drawings, including precision alignment pins/slots.
Why Choose Us
Metallurgical Expertise: Located in Ma'anshan, a major steel base, giving us unparalleled access to and knowledge of high-quality alloy tool steels.
Heavy Machinery Focus: Decades of specialization in heavy-duty tools, ensuring the structural integrity required for hydraulic shearing machine blades.
Strict Quality Control: Each blade undergoes rigorous testing for hardness uniformity and straightness before shipment.
OEM Quality Guarantee: Offering a premium alternative for your D2 material shear blade replacement needs, backed by factory support.
