High Precision Rotary Slitter Knives for Metal Coil Slitting Lines

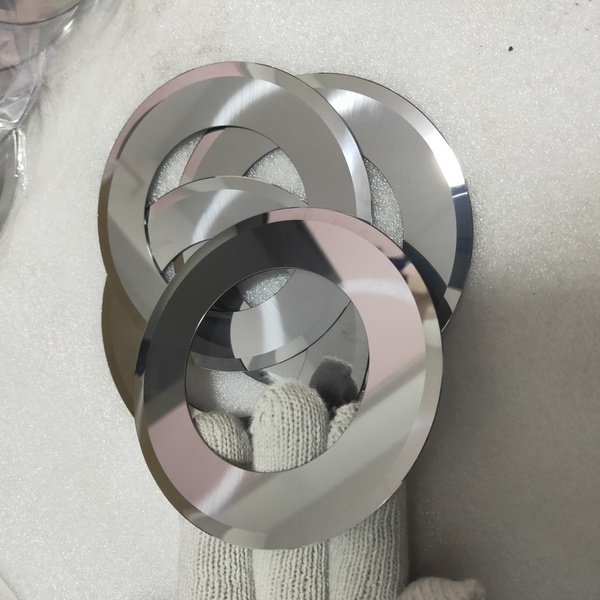

Ma'anshan Guangchuan Machinery Tool & Die Technology Co., Ltd. specializes in manufacturing high-quality annular circular slitting knives and paper core cutter machine blades. These industrial ring slitting cutter tools are characterized by their large inner diameter, designed for specialized rotary cutting applications, particularly the high-speed and clean cutting of paper cores (paper tubes), thin films, and foils. Crafted from premium high-speed steel (HSS) or D2 tool steel and subjected to meticulous precision grinding, our custom large hole rotary blades ensure superior sharpness, extended operating life, and minimal dust or burr during the cutting process.
Order(MOQ) :
1Payment :
TT,LCProduct Origin :
ChinaColor :
N/AShipping Port :
Ma'anshan Shipping PortLead Time :
30 dayMa'anshan Guangchuan manufactures annular circular slitting knives and precision paper core cutter machine blades. Our long lasting paper tube cutting knives and HSS rotary knife for core slitting are precision ground annular shear finished for maximum efficiency. Choose our custom large hole rotary blades for reliable high speed film core cutter and industrial industrial ring slitting cutter applications.
Technical Specifications
|
Parameter |
Description |
| Material Options | HSS (M2, M42), D2 Tool Steel, SKD11, High Chrome Steel (Customizable) |
| Hardness (HRC) | $60-64$ HRC (HSS); Optimized for wear resistance and toughness) |
| Edge Geometry | Single Bevel (Hollow Ground), Double Bevel (Custom Angle) |
| Outer Diameter (OD) | Range: $80mm$ to $400mm+$ (Fully Customizable) |
| Inner Diameter (ID) | Large, customized bore for specific core sizes |
| Tolerance | Flatness (Parallelism) $\le 0.005mm$; Edge Concentricity $\pm 0.01mm$ |
| Application | Core cutting machines, Slitting machines for wide web materials |
Main Features
Optimized for Core Cutting: The HSS rotary knife for core slitting is specifically treated to cleanly shear thick paper cores without deformation or fraying of the paper.
Large ID Customization: Expert in achieving high precision on the large inner diameter bore, critical for concentricity and safe, high-speed rotation.
Superior Edge Retention: Use of HSS and specialized heat treatment ensures these are long lasting paper tube cutting knives.
Precision Grinding: The entire annular surface and the cutting bevel are precision ground annular shear finished to achieve a mirror-like smoothness, reducing friction and dust.
Reduced Jamming: The ring shape and precise bevel angle are designed for effective material clearance, preventing jamming in continuous production.
Advantages
Clean, Accurate Cuts: Delivers a smooth, burr-free edge on paper cores, essential for the quality of the wound material (film, foil, paper).
High-Speed Performance: Material and balance are optimized for the high rotational speeds found in high speed film core cutter machinery.
Cost-Effective Durability: The durability of our blades means lower consumption and reduced operational costs over time.
Custom Fitment Guarantee: We guarantee that our custom large hole rotary blades will fit perfectly and interchange with your existing OEM equipment.
Product Specifications
Core Cutter Blades: For automated and semi-automated machines cutting thick paper and cardboard cores/tubes.
Slitting Components: Used as part of a set for continuous longitudinal cutting of plastic films, BOPP, and flexible packaging.
Materials: Tailored material selection based on the core wall thickness and density (e.g., D2 for thicker walls, HSS for higher speed).
Dimensions: We manufacture to exact customer specifications, making us a specialist in custom large hole rotary blades.
Why Choose Us
Focus on Rotary Precision: We understand the complex requirements for large-ID rotating tools, where balance and flatness are critical.
HSS Mastery: Extensive experience in heat treating High-Speed Steel to maximize its lifespan when cutting abrasive materials like paper cores.
OEM Quality Alternative: Providing the high-precision needed for paper core cutter machine blades at competitive, factory-direct prices.
Customization Expertise: Whether it's a specific bevel angle or a challenging large ID/OD ratio, we deliver bespoke annular circular slitting knives.
Ma'anshan Guangchuan Machinery Tool & Die Technology Co., Ltd. is a leading supplier of large diameter rotary shear with spacer assemblies, specifically engineered for the corrugated cardboard and packaging industry. These precision-matched tools consist of a high-strength steel cutting blade paired with a durable polyurethane (PU) or rubber buffer/spacer. This specialized design ensures clean, non-crushing cuts and effective scoring of multi-ply materials. Our corrugated cardboard circular slitter blades are manufactured to strict flatness and parallelism standards, guaranteeing long-life performance and superior edge quality in high-speed, demanding production environments.
Details
Ma'anshan Guangchuan Machinery Tool & Die Technology Co., Ltd. is a volume producer of high-quality large diameter circular slitter blades and flat circular machine knives. As seen in the $250mm$ size, these knives are the backbone of many continuous production lines, including paper, printing, packaging, and non-woven industries. Manufactured from premium High-Speed Steel (HSS) or D2 Tool Steel, our blades are subjected to strict vacuum heat treatment and precision ground paper cutting tools processes. We ensure superior edge sharpness, exceptional longevity, and precise concentricity, making them ideal long-life slitter knife replacement options for high-volume operations.
Details
Ma'anshan Guangchuan Machinery Tool & Die Technology Co., Ltd. specializes in manufacturing high-quality annular circular slitting knives and paper core cutter machine blades. These industrial ring slitting cutter tools are characterized by their large inner diameter, designed for specialized rotary cutting applications, particularly the high-speed and clean cutting of paper cores (paper tubes), thin films, and foils. Crafted from premium high-speed steel (HSS) or D2 tool steel and subjected to meticulous precision grinding, our custom large hole rotary blades ensure superior sharpness, extended operating life, and minimal dust or burr during the cutting process.
Details
Ma'anshan Guangchuan Machinery Tool & Die Technology Co., Ltd. is a leading manufacturer of precision circular slitting knives and metal coil rotary shear blades. These blades are engineered to meet the extremely tight tolerance demands of slitting metal coils, aluminum foil, heavy paper, and synthetic films. Our commitment to using superior tool steel (D2, HSS) and specialized cryogenic treatment ensures exceptional wear resistance. The critical ultra-high flatness slitting tools and parallelism tolerances guarantee minimal burr and perfect edge quality, maximizing the efficiency and output of your slitting lines.
Details
Ma'anshan Guangchuan Machinery Tool & Die Technology Co., Ltd. specializes in manufacturing high-precision custom hexagonal rotary blades and scalloped edge slitting knives. These unique multi-edge blades are engineered to excel in high-speed applications such as film, foil, paper, and non-woven fabric conversion. The scalloped or polygonal geometry provides a reduced contact area, minimizing friction, heat buildup, and material adhesion. Utilizing high-grade tool steel and ultra-precise grinding, our high-speed film cutting blades ensure clean, accurate cuts and perforations, significantly enhancing machine efficiency and reducing product waste.
Details
Ma'anshan Guangchuan Machinery Tool & Die Technology Co., Ltd. presents our premium line of TiN coated octagonal blades and polygonal rotary knives. These high-performance blades are distinguished by their golden Titanium Nitride (TiN) coating, which significantly enhances surface hardness and reduces friction. Designed for versatility, our rotary cutter replacement blades are ideal for cutting diverse materials ranging from textiles, fabrics, and leather to food products like kebab meat. The unique polygonal geometry ensures a powerful, intermittent cutting action that prevents material jamming and heat buildup, making them superior to standard circular blades in demanding applications.
Details
